Why 10,000 litres underground isn’t an off-the-shelf size

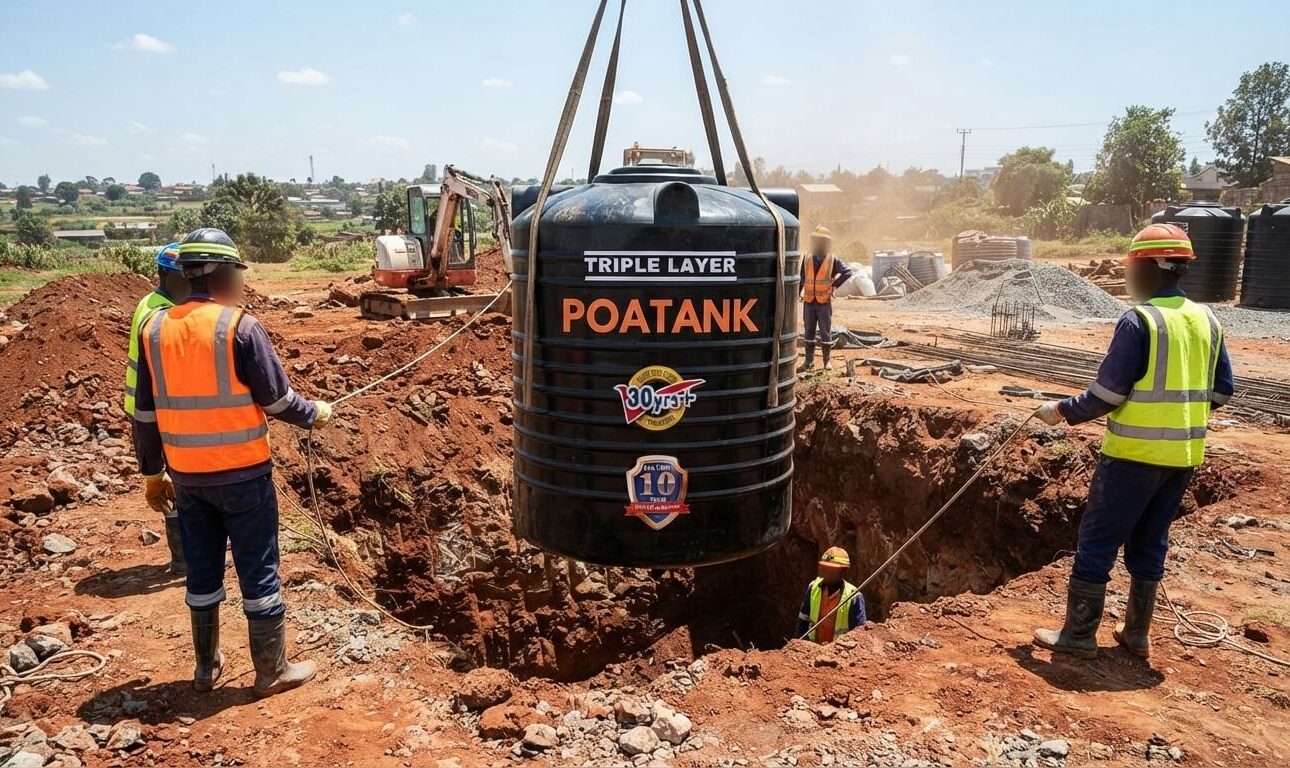

Poa Tanks’ underground BELL tank range currently tops out at 4,500 litres, listed at KSh 103,320.10. Underground plastic tanks are built to be lowered into an excavated pit as a single moulded shell, past a certain size that becomes impractical to manufacture, transport, and bury as one piece, which is why the range stops well short of 10,000 litres.

A genuine 10,000 litre underground tank in Kenya is almost always a precast concrete or in-situ cast concrete structure built on site, or occasionally a large fibreglass tank, rather than a plastic tank ordered off a shelf. That changes both the cost structure and the timeline considerably.

What Poa Tanks’ underground range costs

If underground storage in the plastic BELL format is what you’re after, here’s the full range currently available, all built with the same rotomoulded, UV-stabilised construction as the overground tanks.

Poa Tanks Underground (BELL) Range

Getting to 10,000 litres of underground storage

For large underground storage, most Kenyan homeowners either go with a custom concrete tank sized to the plot, priced per project rather than off a catalogue, or install two or more of the 4,500L BELL units side by side and plumb them together. The second option keeps you inside a manufactured, warrantied product rather than a poured-concrete build, at the cost of needing more excavation space for multiple pits.

Compare that against going overground at 10,000 litres instead, our 10,000 litre water tank price guide covers the cylindrical version at KSh 99,988.85, which is a very different installation project, no excavation, but a footprint and a base that needs to hold roughly 10 tonnes once full.

What drives underground tank cost

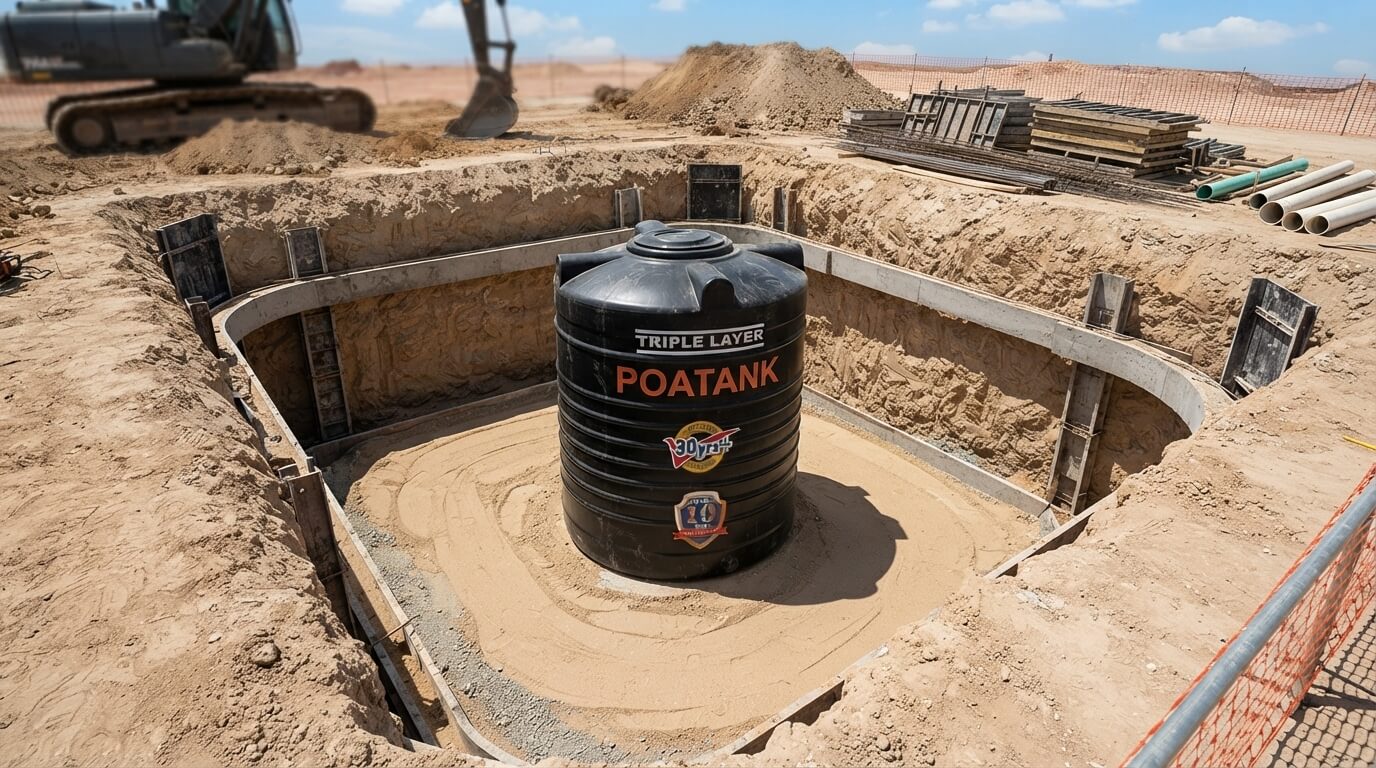

Excavation is the number that surprises most people, digging a pit deep and wide enough for a 4,500 litre shell, disposing of the soil, and reinforcing the sides against groundwater pressure often costs more than the tank itself. Site access matters too, a plot that machinery can reach easily costs less to excavate than one where digging has to be done by hand.

Read the installation guide before committing to an underground tank of any size, the groundwork requirements are different enough from an overground tank that skipping this step is where most underground installations run over budget.

Option one: a custom concrete underground tank

For large underground storage, a custom-built concrete tank is the traditional route. It’s designed to the plot, excavated, reinforced, cast and waterproofed on site, and it can be sized to 10,000 litres or well beyond. The benefit is flexibility: the shape and depth can be adapted to the site, and the tank can be integrated with the foundations of other structures.

The trade-offs are time, cost variability and quality control. A concrete tank takes days or weeks to build and cure, the final price depends on labour and materials rather than a fixed catalogue figure, and the quality of the waterproofing decides whether it leaks or grows algae. It’s also much harder to repair than a plastic tank if a crack develops later. If you go this route, get a written specification and a fixed quote before work begins, and ask specifically how the interior will be sealed.

Option two: several BELL tanks plumbed together

The second route keeps you in a manufactured, warrantied product. Poa Tanks’ BELL underground range goes up to 4,500 litres, so two of them give you 9,000 litres and three give you 13,500. Plumbed together with connected outlets, they act as a single storage system.

At current prices, two 4,500 litre tanks would come to roughly KSh 206,640 for the tanks alone (2 x KSh 103,320.10), before excavation and plumbing. That figure is only a rough guide, since prices change, but it gives you a realistic order of magnitude to compare against a concrete quote. The advantages are a factory-moulded shell, a smooth food-grade interior, and a predictable timeline. The disadvantage is that you need enough plot area to excavate two or more pits with space between them, and the plumbing has to be designed properly so the tanks fill and draw down evenly.

• Leave enough clear ground between pits so the soil between them doesn’t collapse during excavation.
• Connect the tanks at the same level so water balances between them.
• Plan a single access point for the pump and inlet so maintenance stays simple.
• Ask about groundwater on your plot before you dig anything.

Option three: go overground and keep the budget for the pump

If the reason you wanted underground storage was mainly space or appearance, it’s worth asking whether an overground tank with a screen or a planted border would meet the same goal at a lower cost. The 10,000 litre cylindrical tank is listed at KSh 99,988.85, which is cheaper than a single 4,500 litre BELL underground tank, and it needs no excavation at all.

The catch is the footprint and the base. A tank that size needs a slab designed for roughly ten tonnes and a spot where it can stand without being an obvious eyesore. For many homeowners the savings on excavation and pit reinforcement are enough to make that the better trade. Compare the two directly in our guide to the 10,000 litre water tank price in Kenya, and read the warranty terms for either product you choose so you know what installation conditions apply.

A budgeting checklist before you commit

Because a 10,000 litre underground system is a project rather than a product, it deserves a proper budget. List the tank or tanks, excavation, base, backfill, pipework, access covers, a pump if needed, and a contingency. Get at least two written quotes for any custom concrete work, and compare them against the multi-tank BELL option using current prices from the underground tanks page.

Ask each contractor for a timeline, a payment schedule tied to milestones, and a description of what happens if problems appear. Be cautious about paying large amounts upfront. Finally, check whether the design meets any local requirements for your plot. A careful budget takes an afternoon to prepare and can save you from an expensive redesign midway through the build. When you’re ready, talk to the team about the product options.
